FORZA FMX140BF

FORZA FMX140BF

Regular price $2,499.00 NZD
Regular price Sale price $2,499.00 NZD
Sale Sold out
Shipping calculated at checkout.

FORZA FMX140BF

FREE ASSEMBLY & FREE OIL CHANGE ON ALL CLICK & COLLECT ITEMS

Price breakdown is $2499 + $150 Freight to Store

☝ NZ's best-selling 140cc Pit Bike models over the last 10+ years

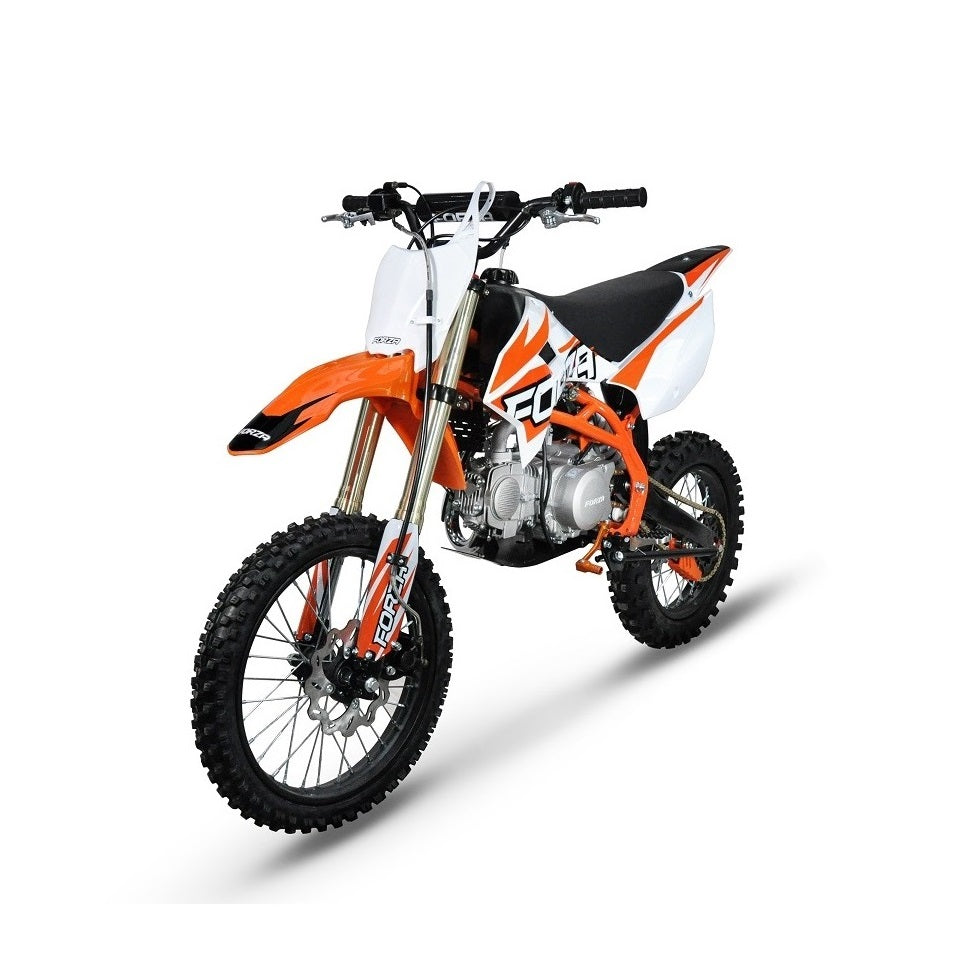

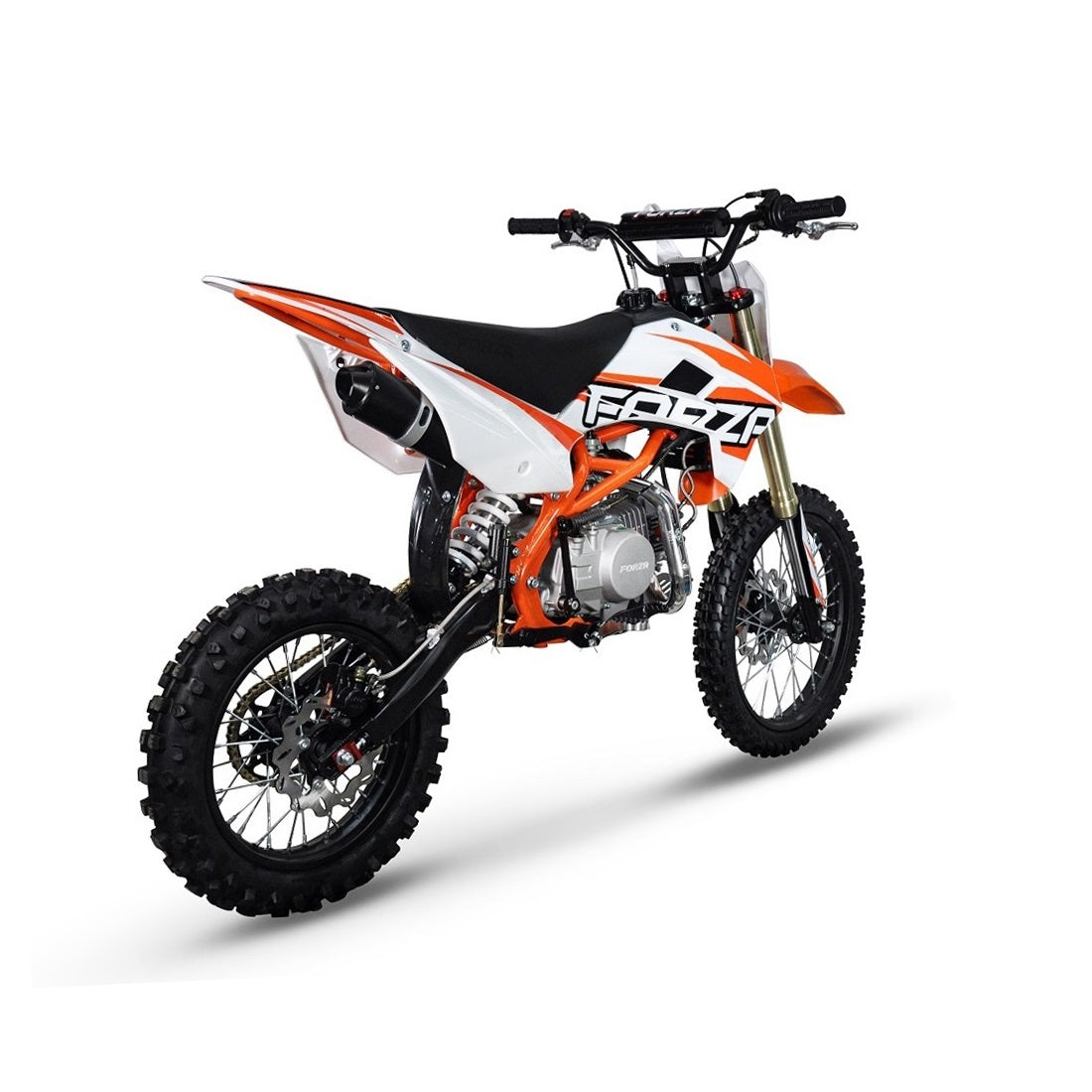

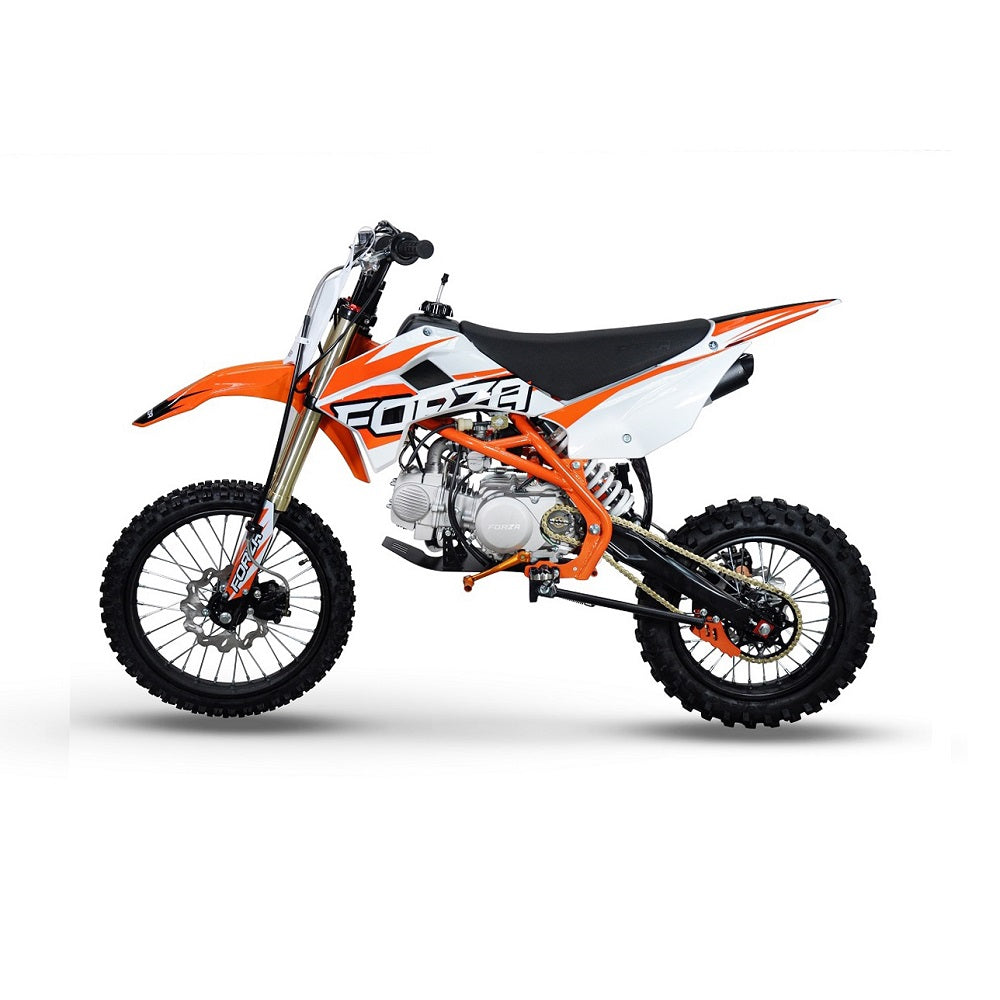

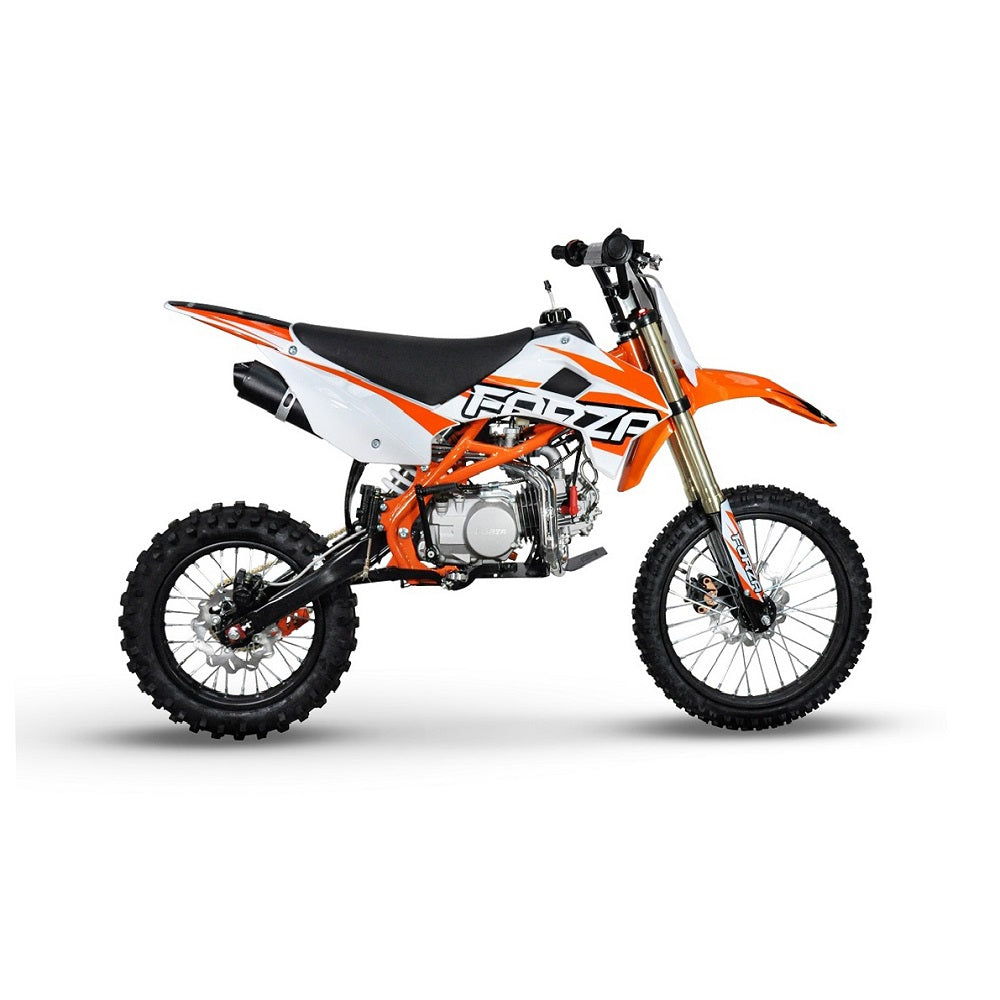

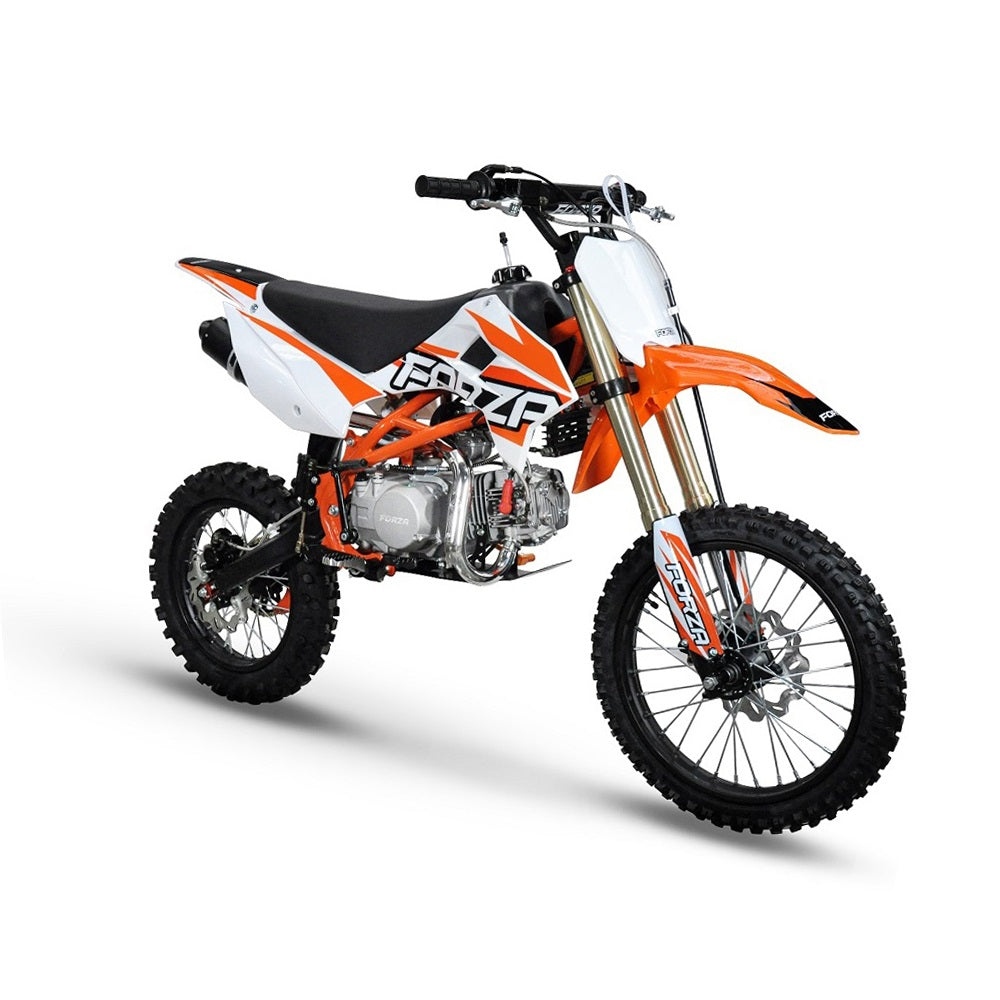

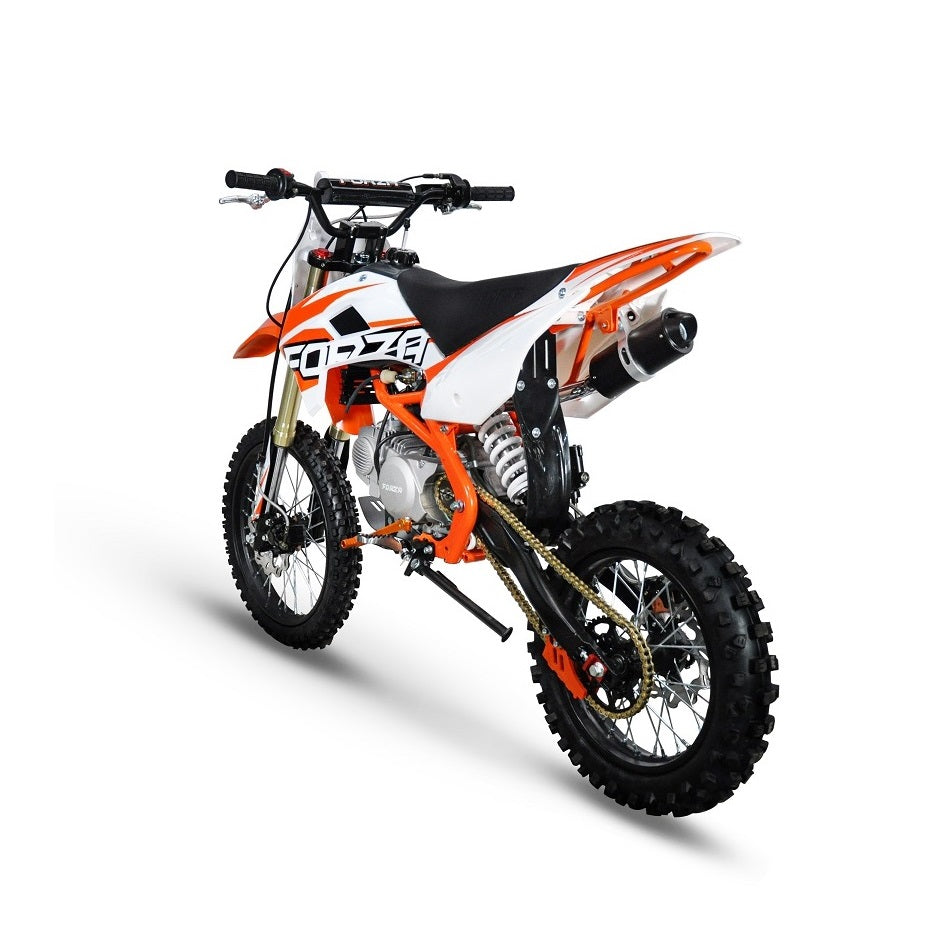

The New FMX140 BF (17"/14") features the revolutionary 801 Double X Tubular frame with longer rear suspension (360mm, extra 60mm travel). The bike is 45% stronger and a lot more comfortable to ride than before. 870mm seat height and long wheelbase design make it perfect for tall riders or entry-level trail bike riders.

 Key Features:

 - Engine: Pitsterpro GPX/YX 140 Big bore, Oil Cool, Any-Gear start

- Italian NIBBI Carb

- Japanese NGK Plug

- Frame: 801 Double X Tubular frame

- Forged Alloy Triple & bar clamps

- 360mm Long-travel heavy duty Shock

- Wavy Brake Discs

- Stainless Steel pegs

- All New KRZ Plastic

- New Graphics Design



* 6 MONTHS Parts Warranty

Engine Type:

4-Stroke, oil-cooled, single cylinder

Displacement (cc):

140cc

Bore and Stroke:

56mm × 57mm

Ignition:

CDI, NGK spark plug

Carburetion:

Japanese Mikuni PZ30 26mm

Transmission:

4-Speed Manual, N1234

Starter System:

Kick start, start in any gear

Exhaust System:

Factory alloy BIG BORE exhaust

Compression Ratio:

8.8 : 1

Frame:

Revolutionary 801 double X tubular frame

Triple Clamps:

Forged Alloy Triple Clamp Assembly

Swing Arm:

Pro Link Chrome

Suspension Front:

Heavy duty long travel oil spring inverted USD forks

Suspension Rear:

Factory 1000lbs heavy duty shock

Wheel/Tyre Front:

SDG wheel, 70/100-17 knobby tyre

Wheel/Tyre Rear:

SDG wheel, 90/100-14 knobby tyre

Brake Front:

Factory hydraulic disc brake

Brake Rear:

Factory hydraulic disc brake

Wheelbase:

1200mm

Seat Height:

870mm

Ground Clearance:

360mm

Fuel Tank Capacity:

5.5L

Curb Weight:

73kg

Max Load:

100kg

Dimensions:

1750mm (L) x 740mm (W) x 1140mm (H)
